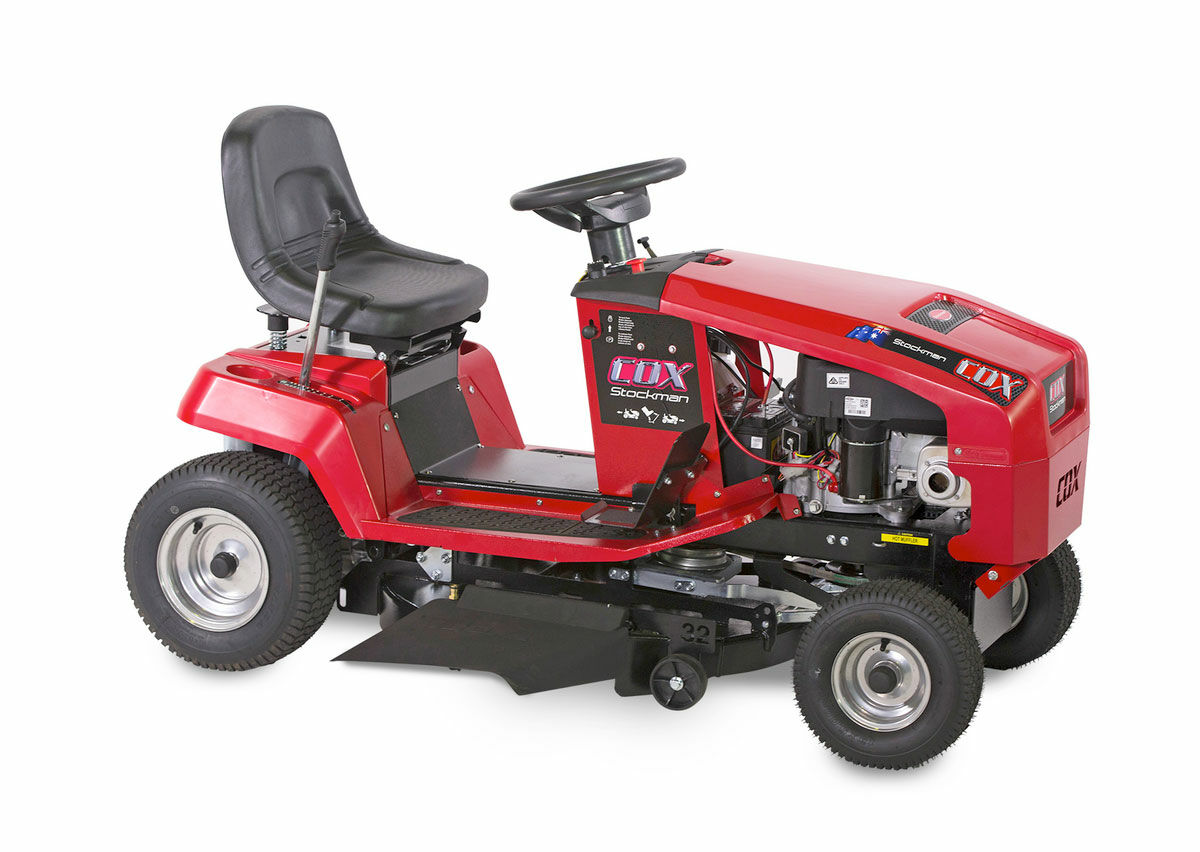

Stockman

Specifications

• Engine

• Model

  Stockman – CTH15B32 / CTH15C32 / CTH16C32

• Engine

  B&S Intek 15.5HP / COX 15HP OHV / COX 16HP OHV

• Cylinders

  Single

• Displacement

  500cc / 432cc / 440cc

• Oil Capacity

  1.4 L

• Engine Warranty

  2 Yrs B&S Covered / 3 Yrs COX Conditional

• Drive

• Drive Type

  Hydrostatic Transaxle

• Drive Model

  Tuff Torq K46

• Drive Warranty

  2 Yrs Conditional

• Ground Speed

  FWD 0–9 KPH / REV 0–6 KPH

• Cutting System

• Cutter Deck Width

  32" (805 mm)

• Blade Engagement

  Ogura Electromagnetic Clutch

• Cutter Belt Type

  Premium B-Section

• Height Range

  20 mm–75 mm (40 mm–95 mm optional raise kit)

• Blade Type

  Heavy Duty Swing Back

• Chassis

• Tyres

  13x5.00-6 (F), 16x6.5-8 (R)

• Seat

  Comfort Seat with Springs

• Seat Adjustment

  Manual Adjustment

• Hour Meter

  Standard

• Construction

  Fabricated Steel

• Steering Wheel

  Premium Steering Wheel

• Dimensions

• Length

  1700 mm

• Width

  805 mm

• Weight

  189 kg

• Warranty

• Warranty

  5 Yrs Conditional
