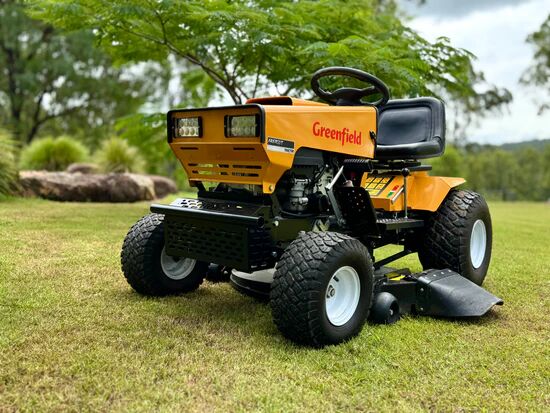

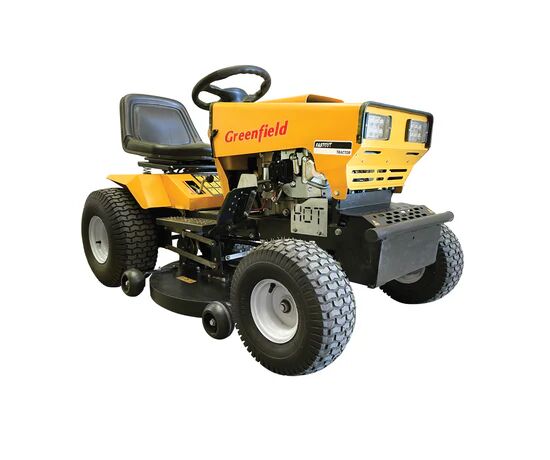

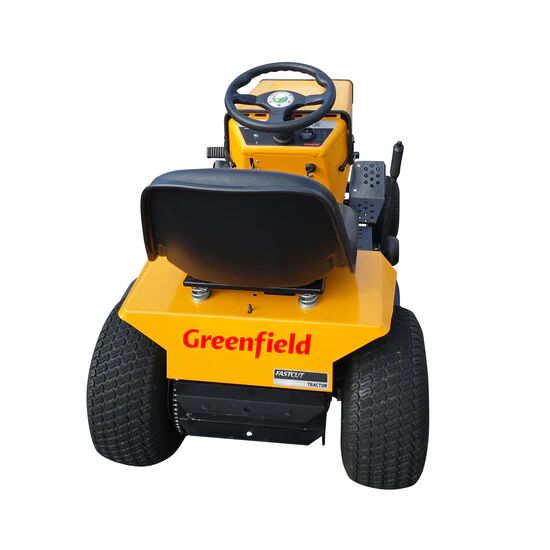

Fastcut Deluxe (24HP – 34″ Steel)

Specifications

Engine

• Engine: COX

• Horsepower: 24 HP

• Cylinders: V-Twin

• Displacement: 680 cc

• Fuel Capacity: 7 L

• Oil Capacity: 2 L

• Engine Warranty: 3 years conditional

Drive System

• Drive Type: Patented variable speed friction drive system with heel/toe foot pedal

• Quicklock Differential: Yes

• Ground Speed: Forward 0–10 kph / Reverse 0–10 kph

Chassis Construction

• Frame: Folded 2.5 mm

• Panels: Rust-Free Zinc Coated Metal Panels

• Finish: Ripple Finish Powder Coating

Cutting System

• Cutter Deck Width: 34″

• Blade Engagement: Electromagnetic Clutch

• Belt Type: Premium B Section

• Blade Type: Heavy Duty Swing Back Type

• Cutter Deck Construction: Fabricated Steel

• Cutting Height Range: 20 mm – 90 mm

Comfort & Safety

• High Back Seat: Standard

• Seat Adjustment: Finger Tip Adjustable

• Steering Wheel: Sports Style

• Hour Meter: Standard

• Headlights: LED

Tyres & Wheels

• Tyres Front: 15 × 6.00 × 6

• Wheels Front: 6″ Rust Free Steel

• Tyres Rear: 20 × 8.00 × 8

• Wheels Rear: 8″ Rust Free Steel

Dimensions

• Length: 1650 mm

• Width: 880 mm

• Weight: 266 kg

Warranty

• 5 year conditional warranty
